CAT5/5e LAN/Network/Communication Cable with 750V AC/1s Dielectric Strength HOKC-Cat5eCable01 manufacturer from China Shenzhen Hongke Electronics Co., Ltd

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: HOKC-Cat5eCable01

Production Capacity: 10000pcs/month

Delivery Date: 15-20days

Brand Name: HOKC

Means of Transport: Ocean

Packing: box

Application: Electronic

Applications: transmission control system, internal wiring of electronic and electrical system

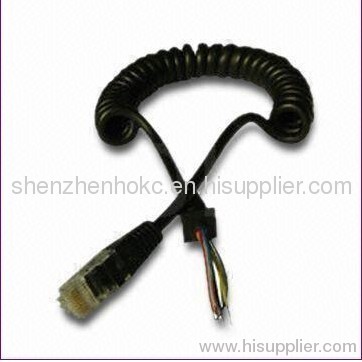

CAT5/5e LAN/network/communication cable
Applications: transmission control system, internal wiring of electronic and electrical system
Temperature rating: 75°C
Spark test: 2,000V AC/0.15s (minimum)
Dielectric strength: 750V AC/1s (minimum)
Mutual capacitance: 5.6nF/100, (maximum)
Pair to ground unbalance: 330pF/100M, (maximum)
D/C resistance: 8.76Ω/100M at 20°C (maximum)
D/C resistance unbalance: 5%, (maximum)
Impedance: 100 ±15Ω
Material of conductor: bare copper (as per requirement)
Material of insulation: PE
Insulation resistance: PE: 500V DC, 1,500MΩ/100M minimum at 20°C
Overall jacket: PVC, PE, LSOH
Overall jacket colors: red, white, blue, yellow, black, green, gray, orange, purple and pink
Rubber boots used for strain relief, protecting from the bending or other damages
Pinout: 568B straight through, 568A straight through, cross-over
Connector: 50-micro gold plated RJ45 male/male connectors
Shield: UTP, FTP, STP, SFTP
Length: 100, 305, 500m (as per requirement)
AWG: 23/24/26/28AWG (optional)
